Iphone 14 Loudspeaker Replacement

The iPhone 14 is known for its excellent sound quality, but even the best devices can encounter problems. Whether your speaker is producing distorted sound, has stopped working, or is simply not as loud as it used to be, this step-by-step guide will walk you through the process of replacing it.  By following our instructions, you'll restore your iPhone 14's sound quality quickly and efficiently.

Are you tired of struggling to hear your calls or music due to a faulty loudspeaker? Many iPhone 14 users face this frustrating issue, impacting their daily use of the phone. Imagine missing an important call or not being able to enjoy your favorite song because the sound is muffled or crackling. But don't worry, replacing the loudspeaker is simpler than you think. This guide will provide you with the solution you need. In this article, we’ll cover everything necessary for a successful iPhone 14 loudspeaker replacement. Let’s get started!

Precautions Before Replacing the Loudspeaker:

It's important to adhere to these safety precautions before changing the iPhone 14 loudspeakers:

• For your safety, discharge the battery below 25% before disassembling your device.
• This reduces the risk of fire if the battery is accidentally damaged during the repair.
• If your battery is swollen, take appropriate precautions.
• Put on protective eyewear.
• Make use of the proper tools, like a panel tool and screwdriver.

Required Tools and Materials:

To protect the delicate internal components of the iPhone, it's critical to use the right equipment. The following materials and equipment are required to replace the loudspeaker:

• An alternative loudspeaker
• Screwdriver with pentalobe (P2)
• Screwdriver by Phillips (000)
• The Spudger
• Tools for Opening Plastic
• Handle with Suction
•  Tweezers & tape
• Sticky Strips
• Anti-static Handcuff
• Magnifying Glass
• A hair dryer or a heat gun
• A gridline-equipped magnetic work mat

Step to Replace the iPhone 14 Loudspeaker

Replacing the loudspeaker can fix issues like distorted or poor audio during calls and video music. Replacing the loudspeaker on an iPhone 14 requires accuracy and the right tools. Here's how to replace the loudspeaker on an iPhone 14, step-by-step:

Step 1: Set Up Your Work Area

• Make sure the area around you is very neat and clean.
• Assemble the following tools; suction handle, plastic spudger, tweezers, and precision screwdrivers.
• To keep screws organized, have a little container or a magnetic board handy.
• To stop static damage, place a wrist strap or anti-static mat.
• Put on safety gloves to prevent debris and fingerprints from getting on components.
• During the repair, have a soft cloth ready to place the iPhone on.
• Ascertain that the replacement loudspeaker is prepared.

Step 2: Power Off and Remove Pentalobe Screws

• Power off your iPhone before beginning any disassembly to prevent electrical damage.
• Locate the two 6.8 mm-long pentalobe P2 screws at the bottom edge of the iPhone.
• Use a pentalobe screwdriver to remove the two screws.
• Keep the screws safe; they are small and easy to lose.

Step 3: Mark the Opening Pick

An opening pick can damage your device if it is inserted too far. To label your pick and guard against harm, follow this step.

• Mark the opening pick with a permanent marker by measuring three millimeters from the tip.
• Additionally, you have the option to mark the pick's other corners with various measurements.

Step 4: Cover any Fractures with Tape

• If the rear glass of your iPhone is cracked, cover the glass with tape to stop more damage from occurring and to protect yourself while fixing it.
• Using clear packaging tape, cover the entire face of the iPhone by placing overlapping pieces over the glass.
• To shield your eyes from any glass that may be shaken loose during the repair, put on safety glasses.
• If the suction cup does not stick after a few attempts, use a strong piece of tape (duct tape, for example) folded into a handle to lift the back glass.
• You can superglue the suction cup to the rear glass if everything else fails.

Step 5: Warm the All Side Edges

• Use a hair dryer or a heat gun to heat the bottom edge of the iPhone for about 90 seconds.
• Ensure the screen is slightly too hot to touch, but avoid leaving the hair dryer in one spot for too long.
• Apply a suction handle to the bottom edge of the rear glass, avoiding the very edge.
• Pull up on the suction cup with firm, constant pressure to create a gap between the rear glass and the frame.
• Insert an opening pick into the gap created by the suction handle.
• The adhesive is very strong; if necessary, apply more heat and gently rock the rear glass to weaken the adhesive.
• Use the hair dryer to heat the left edge of the iPhone for another 90 seconds or until hot to touch.
• Slide the opening pick around the lower left corner and up the left edge to slice through the adhesive.
• Avoid inserting the pick more than 3 mm to prevent damaging internal components.
• Repeat the heating process on the right edge (with the power button) for 90 seconds.
• Re-insert the pick at the bottom edge and slide it up the right side, separating the adhesive.
• Heat the top edge of the iPhone for 90 seconds and insert the pick underneath the top right edge.
• Slide the pick around the top-right corner and halfway across the top edge to complete the separation of the rear glass.

Step 6: Separate the Left Adhesive

• The cables along the left edge are delicate and easy to damage with a pick.
• Insert a second opening pick into the bottom left corner of the iPhone.
• Carefully twist both picks simultaneously until the left edge clips release.
• Apply the twisting force gradually to avoid damaging the internal components.
• If you encounter resistance, reheat the left edge with a hair dryer or heat gun for about 90 seconds.
• Once the adhesive is sufficiently heated, repeat the twisting motion to continue separating the left edge.
• Ensure the picks are not inserted more than 3 mm to prevent damage to the cables.
• Keep a firm grip on the device to maintain control during the process.
• Patience is key; work slowly to avoid unnecessary damage.
• Once the left edge adhesive is separated, you can move on to the other sides of the iPhone.

Step 7: Shut Down and Open Your iPhone

• To protect your iPhone from any electrical damage, turn it off entirely.
• Take out the two pentalobe screws located at the phone's bottom.
• Lift the front panel carefully, using the suction handle.
• To create a space, place the plastic spudger between the frame and the display.
• To free the clamps keeping the display in place, move the spudger down the edges.
• Carefully open the iPhone from the right side, much like you would a book.
• To prevent harming the cords, make sure you don't pull the display too far.

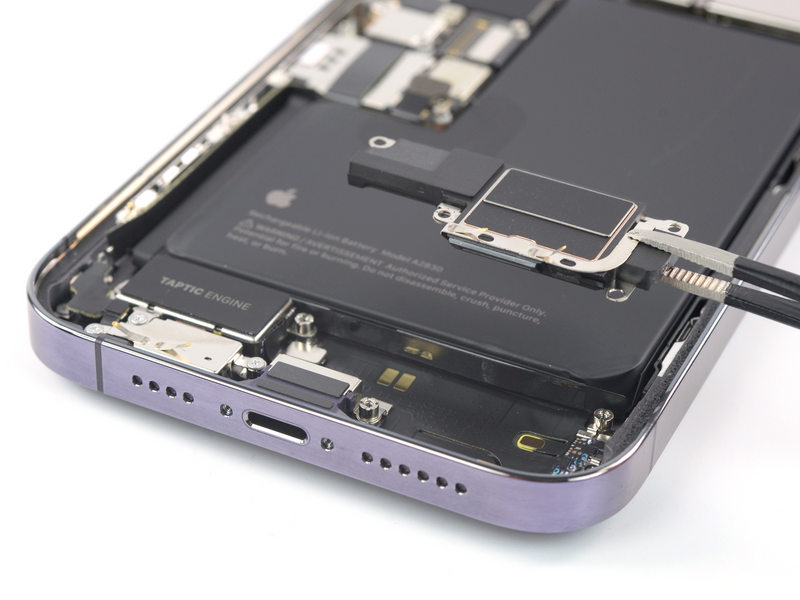

Step 8: Remove the Battery Connector Cover

• Use a Y000 screwdriver to remove the eight screws securing the battery connector cover.
• Remove the five 1.3 mm-long screws first.
• Next, remove the two 1.6 mm-long screws.
• Finally, remove the one 1.9 mm-long screw.
• Keep track of each screw to ensure it goes back in its original place to avoid damaging your iPhone.
• During reassembly, power on your iPhone to test all functions before sealing the screen back in place.

Step 9: Disconnect the Battery

• Use the pointed end of a spudger to disconnect the battery cable by prying the connector straight up from its socket.
• Avoid damaging the black silicone seal surrounding this and other board connections, as these seals provide extra protection against water and dust intrusion.
• Bend the connector slightly away from the logic board to prevent it from accidentally making contact with the socket.
• Ensuring the connector doesn't touch the socket prevents the phone from powering on during the repair.
• Handle the spudger with care to avoid slipping and causing damage to nearby components.
• Double-check that the battery is fully disconnected before proceeding to the next step.

Step 10: Disconnect the Charging Coil

• Use a plastic spudger or your fingernail to gently pry up the charging coil connector from its socket.
• Lift the connector straight up to avoid bending or damaging the pins.
• Ensure you handle the charging coil connector carefully to prevent tearing or breaking the delicate wires.
• Keep the charging coil connector away from the socket to prevent accidental reconnection during the repair.

Step 11: Take Out the Back Glass Assembly.

• Take out the back glass assembly.
• When fresh glue is required, apply it after thoroughly cleaning the affected regions with isopropyl alcohol (>90%).
• This is where you stop during reassembly if you want to change the rear glass adhesives.

Step 12: Take Out the Taptic Engine Fasteners

• Take off the four screws holding the Taptic Engine in place with a Phillips screwdriver.
• The Taptic Engine connecting bracket can be taken off with a pair of tweezers.
• To disconnect the Taptic Engine, pull the connector straight up out of its socket using the pointed end of a spudger.
• The 3.1 mm-long standoff screw can be taken out with a standoff driver.
• The ideal tool to use to remove standoff screws is a standoff driver or driver bit.
•  A little flathead screwdriver can work in a pinch, but be extra careful to make sure it doesn't slip and harm nearby components.
• To extract the Taptic Engine, use your fingers or a pair of tweezers.

Step 13: Take Out the Metal Bracket

• The metal bracket is fastened to the frame with a few clips on the bottom.
• To remove the metal bracket's clips from the frame, carefully pull it upright with a pair of tweezers.
• Be sure to properly line the bracket and reposition the metal clips into the frame's recess when assembling the parts.
• Take out the metal bracket.

Step 14: Get to the Loudspeaker

• Find the phone's loudspeaker, which is located near the bottom.
• Determine which screws hold the speakers in place and remove them.
• Cut any cables that are connected to the loudspeaker.
• To remove the loudspeaker gently, use a spudger or tweezers.
• Clear out the loudspeaker chamber of any dust or debris.

Step 15: Put in the New Speaker

• The new loudspeaker should be positioned exactly where the previous one was.
• Reattach any wires that are connected to the loudspeaker.
• Use the screws you previously removed to secure the speakers.
• If the Taptic Engine was taken out, put it back in place and tighten the screws.
• Make sure all parts are seated correctly and all connections are tight.
• Verify again that there are no pinched or misplaced cables.
• Make sure all internal parts are free of fingerprints and smudges.

Step 16: Reattach the Battery and Display.

• Reattach the display cables to the appropriate outlets on the panels.
• Reinstall the display cable bracket and fasten it firmly with screws.
• Using the spudger, reconnect the battery connector.
• After replacing the cover, fasten it firmly with screws.
• Make sure the phone's display and frame are lined up precisely.
• Starting at the top and working your way down, press the display into position.
• Make sure the display is flush with the frame and that all of the clips are firmly in place.

Step 17: Last Actions and Testing

• The phone's bottom two pentalobe screws need to be replaced.
• Turn on your iPhone, then make sure it boots up properly.
• Make a phone call or play some music to check the loudspeaker.
• Check to make sure the sound is audible and at the right volume.
• Verify that the phone's other features are operating as intended.
• Recheck connections and reassemble procedures as necessary if problems occur.
• Trash outdated parts in an appropriate manner, and tidy up your workspace.

Conclusion

An iPhone 14 loudspeaker can be replaced to greatly enhance the device's audio quality, particularly if problems with muffled or non-functional audio have emerged. Though doable for individuals with some technical know-how, this procedure calls for several exact steps, such as taking out the pentalobe screws, carefully opening the device with a plastic spudger and suction handle, unplugging the battery and display cables, and swapping out the old loudspeaker for a new one. It is ensured that the replacement is done correctly and the device is rebuilt properly, restoring full sound functioning, by following detailed steps.
